산업기계

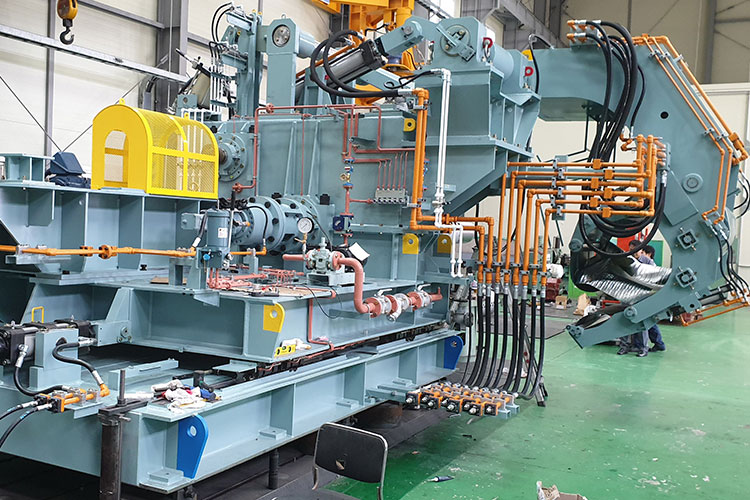

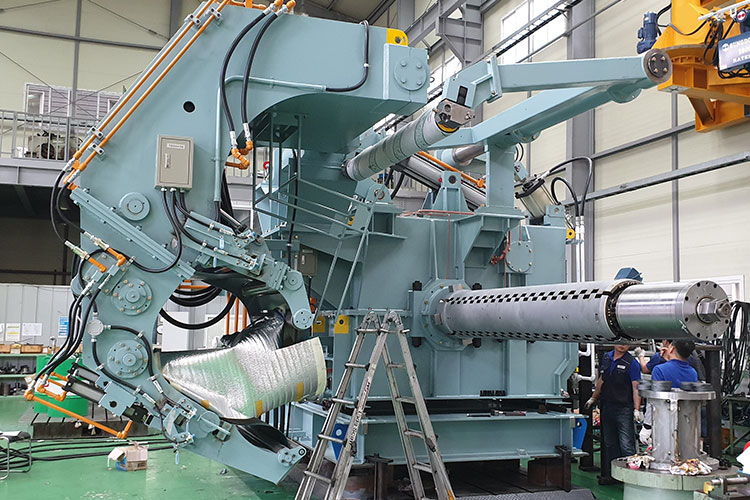

Tension Reel & Belt Wrapper (Weight 34,513kg)

텐션릴(Tension Reel)은 강판코일을 감거나 풀어주는 장치입니다.
벨트 래퍼는 경량 강철 스트립의 초기 랩을 리코일러 맨드릴에 끼우는 것을 돕는 움직이는 벨트가 있는 비구동식 기계입니다. 이 장치는 릴과 접촉하고 핀치 롤에서 릴에 접근할 때 라이트 게이지 스트립을 잡는 유연한 고무 벨트가 있는 강철 구조입니다.

Tension Reel is an apparatus to coil/uncoil hoop material.A belt wrapper is a non-driven machine with a moving belt that that assists threading the initial wraps of light gauge steel strip onto a recoiler mandrel. The unit is a steel structure with flexible rubberized belt that contacts the reel and catches the light gauge strip as it approaches the reel from a pinch roll.

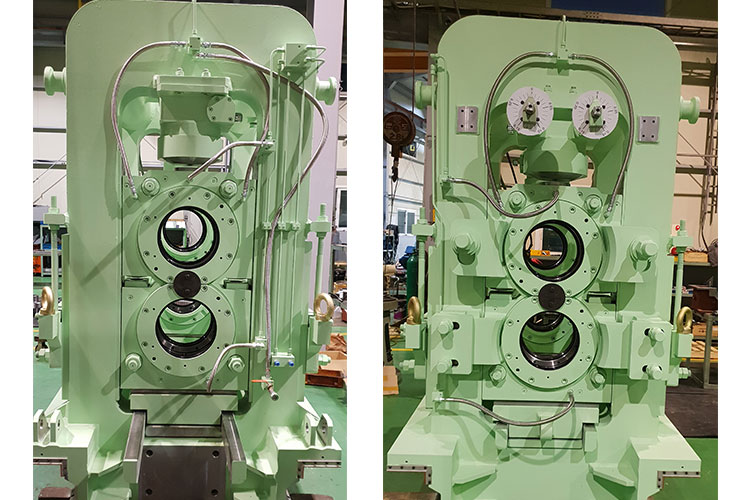

Roughing Mill Stand (Roll Speed 0.54m/sec)

조압연기 스탠드는 강철의 두께를 줄이고 동시에 전체 길이를 늘리는 데 사용됩니다. 압연기 스탠드는 작업 스탠드의 중요한 부분으로, 롤 베어링 초크와 롤러 조정 장치가 프레임에 설치됩니다.

The roughing mill stands are used to reduce the thickness of the steel while at the same time extending the overall length. Rolling mill stand is an important part of a work stand, roll bearing chock and roller adjustment device is installed on the frame.

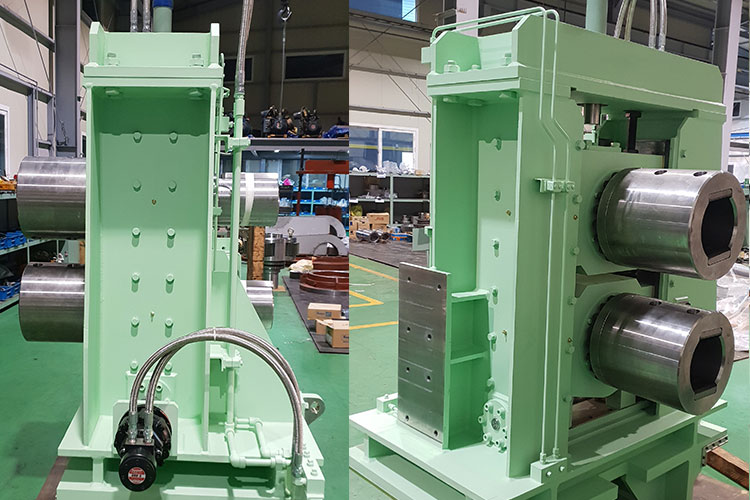

Spindle Support (Intermediate Mill Support)

스핀들 써포터 스탠드는 콜드 밀에 사용되는 유니버설 조인트를 지지하는 데 사용됩니다. 작업 롤이 변경될 때 지지대가 결합됩니다.

Spindle Support Stands are used for supporting the universal joints used in cold mills. Supports are engaged when the work rolls are to be changed.
